Climbing formwork
circularframefree-standing

Climbing formwork - SCAFFCO - circular / frame / free-standing
Climbing formwork - SCAFFCO - circular / frame / free-standing
Climbing formwork - SCAFFCO - circular / frame / free-standing - image - 2
Climbing formwork - SCAFFCO - circular / frame / free-standing - image - 3
Climbing formwork - SCAFFCO - circular / frame / free-standing - image - 4
Climbing formwork - SCAFFCO - circular / frame / free-standing - image - 5
Climbing formwork - SCAFFCO - circular / frame / free-standing - image - 6
Climbing formwork - SCAFFCO - circular / frame / free-standing - image - 7
Climbing formwork - SCAFFCO - circular / frame / free-standing - image - 8
Add to favorites
Compare this product


Characteristics

Type
climbing, circular, frame, free-standing, curved
Application
circular column, bridge, for pillar
Other characteristics
steel, high, large-area, monolithic, height-adjustable
Length

3 cm, 450 cm
(10 in, 177 in)

Description

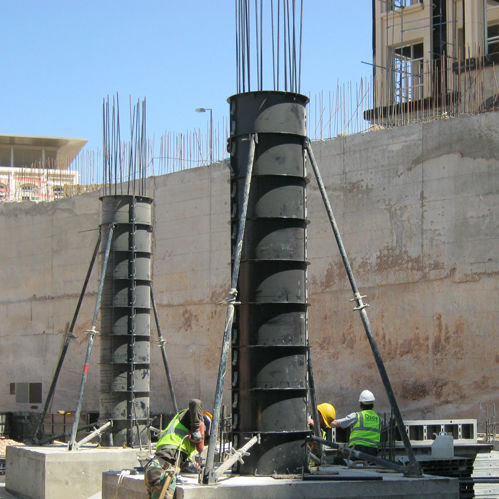

Perfect round columns, with fare faced concrete finish, can be achieved by Scaffco Steel Circular Forms. Keys for Connection A simple blow with a hammer is all it takes to pull the half –shells together and form the perfect circle Diameter & Height Variations With maximum 1 unit height of 3m, an extension of 0.5m and 1m shells can be stacked and bolt secured on top to cast concrete up to 4.5m in height in one pour. All this and with a range of diameter from 0.30m up to 2.50m. Custom Application With the help of the SPF 50 framed formwork panels, the half-shell can be connected to form column with half circle cross section or curved wall ends
