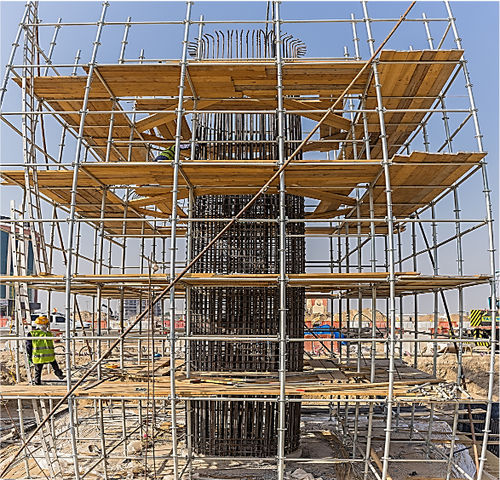

Fixed scaffolding SCAFFSHORE 60

facadefor wind turbinemodular

The SCAFFSHORE system permits the creatively easy, fast, flexible and safe assembly of shoring towers. No pipes and fittings required, stability of the system is achieved by the diagonal ledger bracing. Efficient - Multiple propping head makes it possible to use steel, aluminum or timber decking - Screw-jack head and base-jack allows for 80cm extension range for height adjustment - The beam brackets allows for down stand support at any height inside the slab area Safe - The web formation of the standards and ledgers are ‘locked’ together with ring lock - Extreme stability against lateral forces thanks to the diagonal ledgers - Safely sustains loads at slab-edges by means of cantilever frames Faster - Minimized component and integral connections ensure fast erection - Unique designed drop forged ledger ends that easily latches on standard ring with a snap of a hammer Skewed Grids The SCAFFSHORE ring accurately aligns 45° to 90° connection between shoring standards. Up to 8 connections can be made all around the ring for enhance capacity of shoring, diagonal bracing or even cross bracing. High Load Capacity For heavy load-bearing solution, the SCAFFSHORE 60 handles 75KN fresh concrete load using only 2 ledger level support. The capacity increases with the addition of more ledger supports Braces With a simple hammer strike on the captive wedge of the drop forged ledger end, the ledgers and diagonal braces safely latches on the standard ring. Integrating Load-Bearing Solution Thanks to Radial Ledgers, load-bearing are made possible for any slab thickness at any height. With the Radial Ledgers, more strength is added to the standards and the loads are transferred safely
