Pneumatic manipulator PN Compatto series

with gripping toolpositioningloading

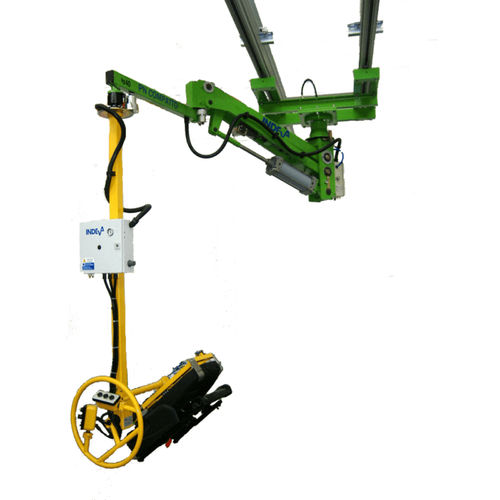

Pneumatic industrial manipulators PN COMPATTO are pneumatic industrial manipulators with rigid vertical arm, suitable for applications in small size, low ceiling work areas. • Lift speed from 15 to 30 m/min • Control: pneumatic • Air pressure: min 6 bars • Work Temperatures: from +5° to +50° C • Noise level: <70 dB • Main column axis brake • Intermediate joint axis brake • Continuous column rotation • Safety devices: in case of pressure failure a safety devices retains the grip on the load, and the tooling descends slowly till the floor. Special brakes keep the arm and gripping tool still when not used Available options • Rotating joint on the articulate axis • System lock for the lift capacity • Brake for up/down movement • Double braking force on the main and intermediate axis • Special painting • Sliding trolley Pneumatic industrial manipulators PN Compatto with jointed arm fixed to an overhead rail Ceiling mounted model is also available.
