Fixed crane MCTC

towerconstructionbuilding

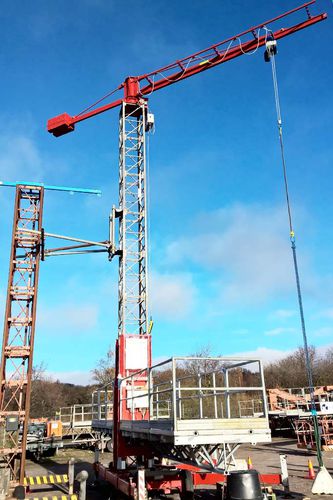

MAST CLIMBER TOP CRANE (MCTC) is a crane expansion which adds many construction crane properties for standard Mast Climbing Work Platforms. It is mounted at the top the Mast Climber mast and is able to rotate 360°. With counter weight it is possible to lift payloads up to 1000 kilograms. The crane can be used for lifting material from ground to platform or directly to the building. It is is a good choice for example at work sites where façade elements or windows elements are installed. With crane the elements can be lifted to the platform and men on the Mast Climber Platform can carry on installation work at the same time. Top Crane can save money in machine costs (crane) and operational space on work site. PAYLOAD capacity depends on the length of the lifting arm and whether the Top Crane is equipped with counter weight. Top Crane can handle payload of 900 kilograms when it is equipped with counter weight and without it the crane arm is able to lift material up to 400 kg at the tip of the crane. In addition the lifted material can be rotated full circle, 360 degrees, around the mast and move along the 6 meters long crane arm.
