Work platform SDE

for formwork

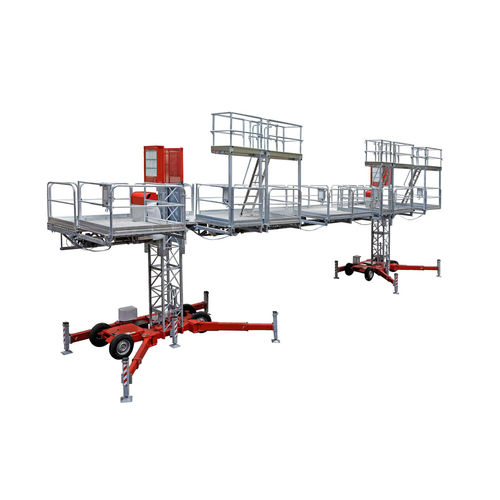

THE SCANCLIMBER SLIDING DECK EXTENSION (SDE) transforms a Standard Mast Climbing Work Platform in to a dynamically aligning platform that makes it easier and quicker to perform surface work on complex building facades. It moves up and down, like any other platform, but it also moves horizontally with several outreaching decks. SC MCWP WITH SLIDING DECK EXTENSION (SDE) allows work on complex facades with several independently back and forth sliding platform decks (modules). Additionally you may have it with an additional working level fixed on top of the sliding deck extension. Two level version decks can also slide back and forth independently. THE INDEPENDENTLY MOVING DECKS can slide 1.6 m outwards from the main platform. If a Sliding Deck Extension is equipped with an upper deck level, it moves along with the lower deck. The upper deck is 2.1 m above the lower deck. THE MOVEMENTS of the deck modules are controlled by motorized drive units using pendant remote control or manually. There is a separate drive unit for every deck module. If the platform is equipped with two levels, the upper level platform modules move with the main decks. THE SLIDING DECK EXTENSION platform is well suited for work on complex building surfaces, where there is a need to work on facades or high horizontal surfaces with protruding obstructions.
