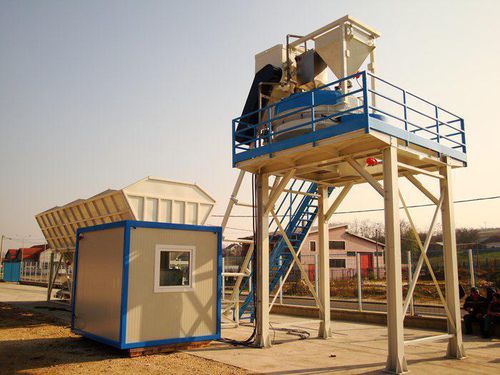

Stationary concrete batching plant SUMAB T-60

automaticcontinuous

The stationary concrete batching plant Sumab T-60, as described below produces wet or dry concrete with high quality and homogeneity. The materials which are inserted into the high quality plant and all kinetic movements of the machine are controlled by electro-hydraulic and electro-pneumatic units, and also controlled by electronic units made by globally recognized manufacturers. Additionally, the plant is made with several modules, which gives the possibility of adapting whole equipment according to every specific demand the buyer has. 4 aggregate storages each of 20 m3 with possibility of increase in boards . Pneumatically opening valves of dosing aggregates. Furthermore, an offer is made based on the basic required technical parameters for the batching plant: Turbine type concrete mixer Р 1250 liters of output of fresh vibrated inserted concrete; Construction type: Cones for hoppers 20 m3each; Coming construction for support; Height of overhang [exhaust] 4 m; Nominal production of capacity of 60 m3/h of fresh vibrated inserted transporting concrete in continuous work (based on 60 sec continuous cycles); 3 types of aggregates; Weight dosing of cement, aggregates and liquid additives; Volumetric dosing of water; Control by manual and automatic [by computer] with 100 different programs of different concrete.
