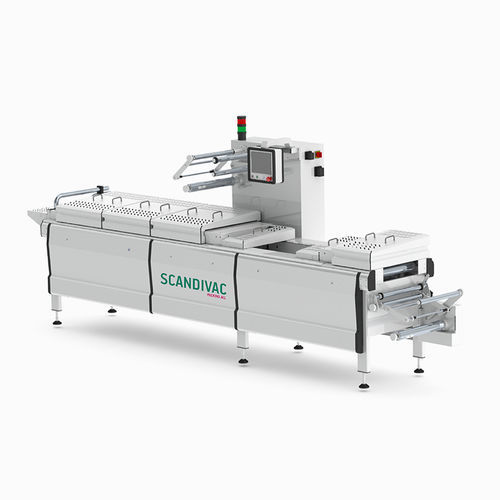

Roll-fed thermoforming machine SC 240 series

for food packagingfor pharmaceuticals packagingfor medical packaging

SCANDIVAC SC 240 is the most popular thermoforming machine for packaging variable size and form products. SCANDIVAC SC 240 can be used to pack wide range of products Food – packing of meat, fish, salads, cheese, vegetables and other products Medicine – packing of medical products Pharmacy – packing of pharmaceutical products, tools and goods Packing of industrial and consumer goods Every single machine is manufactured according to the individual request; therefore it totally conforms with customers’ needs and wishes. By using tested technologies and electronical and pneumatic spare parts of European well known manufacturers, packaging machines provide safe, precise and stable work during many years of operation. Parameters SCANDIVAC SC 240 main parameters Solid stainless steel frame, for safe transportation and for strengthening of systems and mechanisms. Freely variable distance between moulds, giving a possibility to use dies with different cut-off lengths. Durable gripper chain guides casing. 4 or 6 point independent lifting mechanisms for dies with pneumatic drive and grease lubrication from a central location. Made from stainless steel and its moving elements are connected with bearings. All SCANDIVAC machines are equipped with servo drive system for gripper chain. Most of the spare parts are freely available on the market. Type of packaging Only sealing of the package Vacuum and sealing Vacuum, gas and sealing „Skin” packaging Longitudinal cutting Rotary knife assembly Squeezing knife assembly Roller shear cutting assembly – line cutting Roller shear cutting assembly – strip cutting Types of cutting Longitudinal and cross-cutting Shape cutting
