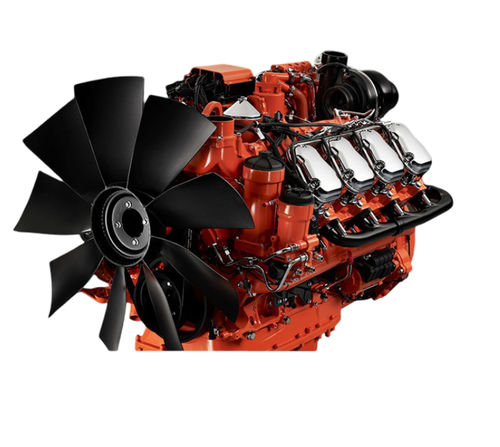

Diesel engine DC16 076A

8-cylinderturbochargedfor the construction industry

The industrial engines from Scania are based on a robust design with a strength optimised cylinder block containing wet cylinder liners that can easily be exchanged. Individual cylinder heads with 4 valves per cylinder promotes repairability and fuel economy. The engine is equipped with a Scania developed Engine Management System, EMS, in order to ensure the control of all aspects related to engine performance. The injection system is based on electronically controlled unit injectors that gives low exhaust emissions with good fuel economy and a high torque. The engine can be fitted with many accessories such as air cleaners, silencers, PTOs and flywheels in order to suit a variety of installations. Standard equipment • Unit injectors, PDE • Turbocharger • Fuel filter and extra pre-filter with water separator • Oil filter, full flow • Centrifugal oil cleaner • Oil cooler, integrated in block • Oil filler, in valve cover • Deep front oil sump • Oil dipstick, in block • Magnetic drain plug for oil draining • Starter, 1-pole 7.0 kW • Alternator, 1-pole 100A • Flywheel, for use with friction clutch • Silumin flywheel housing, SAE 1 flange • Front mounted engine brackets • Open crankcase ventilation • Operator’s manual Optional equipment • Prepared for cooling package • Puller and pusher fans • Fan ring with sealing • Hydraulic pump • Air compressor • AC compressor • Side-mounted PTO • Front-mounted PTO • Exhaust connections • Electrical base system • Control and instrument panels • Accelerator position sensor • Engine heater
