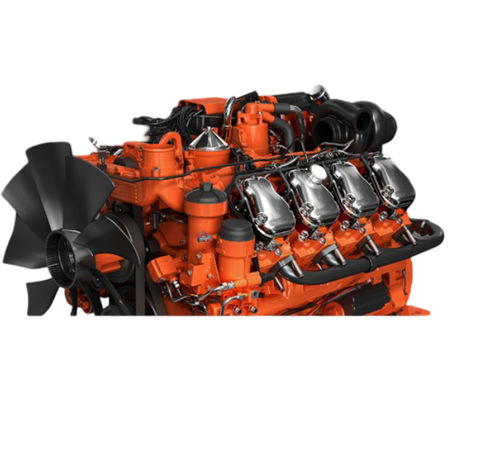

Diesel engine DC16 086A
8-cylinderturbochargedcommon rail

diesel engine
diesel engine
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
8-cylinder
Technology
turbocharged, direct injection, common rail
Product applications
for the construction industry, agriculture
Cooling system
air cooling
Other characteristics
4-stroke, oil-cooled
Power

345 kW, 500 kW, 566 kW
(469.069 hp, 679.811 hp, 769.546 hp)

Torque

2,574 Nm, 2,745 Nm, 3,003 Nm, 3,183 Nm
(1,898.485 ft.lb, 2,024.6081 ft.lb, 2,214.8991 ft.lb, 2,347.6603 ft.lb)

Rotational speed

1,200 rpm, 1,500 rpm, 1,800 rpm, 2,100 rpm
(7,539.82 rad.min-1, 9,424.78 rad.min-1, 11,309.73 rad.min-1, 13,194.69 rad.min-1)

Displacement

16.4 l
(4.332 gal)

Weight

1,375 kg
(3,031.36 lb)

Length

1,315 mm
(51.8 in)

Description

The industrial engines from Scania are based on a robust design with a strength optimised cylinder block containing wet cylinder liners that can easily be exchanged. Individual cylinder heads with 4 valves per cylinder promotes repairability and fuel economy. The engine is equipped with a Scania developed Engine Management System, EMS, in order to ensure the control of all aspects related to engine performance. The injection system is Scania’s XPI (Extra High Pressure Injection), a common rail system that gives low exhaust emissions with good fuel economy and a high torque. The engine can be fitted with many accessories such as air cleaners, silencers, PTOs and flywheels in order to suit a variety of installations. Standard equipment • Extra high pressure fuel injection system, XPI • Turbocharger • Fuel filter and extra pre-filter with water separator • Fuel heater • Oil filter, full flow • Centrifugal oil cleaner • Oil cooler, integrated in cylinder block • Oil filler, in valve cover • Deep front oil sump • Oil dipstick, in cylinder block • Magnetic drain plug for oil draining • Starter, 1-pole 7.0 kW • Alternator, 1-pole 100 A • Flywheel, for use with friction clutch • Silumin flywheel housing, SAE 1 flange • Front-mounted engine suspension • Open crankcase ventilation Optional equipment • Prepared for cooling package • Puller and pusher fans • Fan ring with sealing • Hydraulic pump • Air compressor • AC compressor • Side-mounted PTO • Front-mounted PTO • Exhaust connections • Accelerator position sensor • Engine heater • Flywheel SAE 14” • Stiff rubber engine suspension
