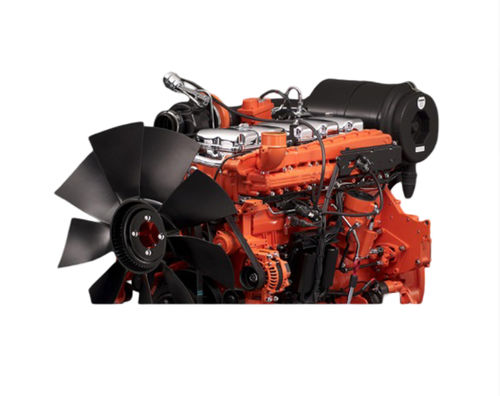

Diesel engine DC09 071A
5-cylinderturbochargedin-line

diesel engine
diesel engine
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
5-cylinder
Technology
turbocharged, in-line
Product applications
for generator sets, power generation
Cooling system
air cooling
Emissions level
Stage III
Other characteristics
4-stroke, oil-cooled
Power

Max.: 313 kW
(425.561 hp)

Min.: 226 kW
(307.274 hp)

Rotational speed

1,500 rpm, 1,800 rpm
(9,424.78 rad.min-1, 11,309.73 rad.min-1)

Displacement

9.3 l
(2.457 gal)

Weight

950 kg
(2,094.39 lb)

Length

1,242 mm
(48.9 in)

Description

The power generation engines from Scania are based on a robust design with a strength-optimized cylinder block containing wet cylinder liners, which can easily be exchanged. Individual cylinder heads with 4 valves per cylinder promotes reparability and fuel economy. The engine is equipped with a Scania-developed Engine Management System, EMS, to ensure control of all aspects related to engine performance. The injection system is based on electronically controlled unit injectors, which gives low exhaust emissions with good fuel economy and a high torque. For further reduction of NOx emissions, the engines are also equipped with an exhaust gas recirculation (EGR) system, developed by Scania. The engine can be fitted with many options such as air cleaners, PTOs and cooling package, to suit a variety of installations. • Unit injectors, PDE • Turbocharger • Fuel filter and extra pre-filter with water separator • Oil filter, full flow • Centrifugal oil cleaner • Oil cooler, integrated in cylinder block • Oil filler, in valve cover • Deep front oil sump • Oil dipstick, in cylinder block • Magnetic drain plug for oil draining • Starter motor, 1-pole 6.0 kW • Alternator, 1-pole 100 A • Flywheel, SAE 14 • Silumin flywheel housing, SAE 1 flange • Front-mounted engine suspension • EGR system • Open crankcase ventilation
