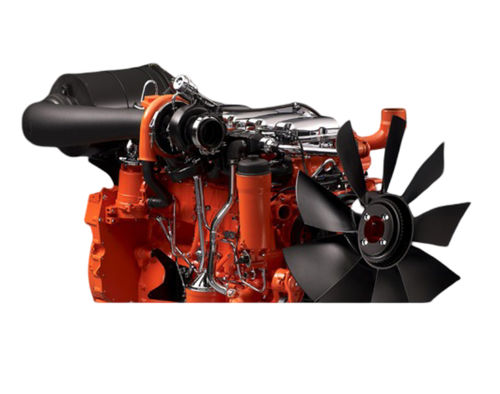

Diesel engine DC09 073A
5-cylinderturbochargedin-line

diesel engine
diesel engine
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
5-cylinder
Technology
turbocharged, in-line
Product applications
for generator sets, power generation
Cooling system
air cooling
Emissions level
Stage II
Other characteristics
4-stroke, oil-cooled
Power

Max.: 358 kW
(486.744 hp)

Min.: 226 kW
(307.274 hp)

Rotational speed

1,500 rpm, 1,800 rpm
(9,424.78 rad.min-1, 11,309.73 rad.min-1)

Displacement

9.3 l
(2.457 gal)

Weight

950 kg
(2,094.39 lb)

Description

The power generation engines from Scania are based on a robust design with a strength-optimized cylinder block containing wet cylinder liners, which can easily be exchanged. Individual cylinder heads with 4 valves per cylinder promotes reparability and fuel economy. The engine is equipped with a Scania-developed Engine Management System, EMS, to ensure the control of all aspects related to engine performance. The injection system is based on electronically controlled unit injectors, which provides good fuel economy and a high torque. The engine can be fitted with many accessories such as air cleaners, PTOs and cooling package, to suit a variety of installations. Standard equipment • Unit injectors, PDE • Turbocharger • Fuel filter and extra pre-filter with water separator • Oil filter, full flow • Centrifugal oil cleaner • Oil cooler, integrated in cylinder block • Oil filler, in valve cover • Deep front oil sump • Oil dipstick, in cylinder block • Magnetic drain plug for oil draining • Starter motor, 1-pole 6.0 kW • Alternator, 1-pole 100 A • Flywheel, SAE 14 • Silumin flywheel housing, SAE 1 flange • Front-mounted engine suspension • Open crankcase ventilation Optional equipment • Cooling package • Fan • Cast iron flywheel housing • Side-mounted PTO • Exhaust connections • Engine heater • Stiff rubber engine suspension • Air cleaner • Closed crankcase ventilation • Studs in flywheel housing • Coolant level sensor • Fine tune potentiometer • Ramp start delay • Ramp-up rate
