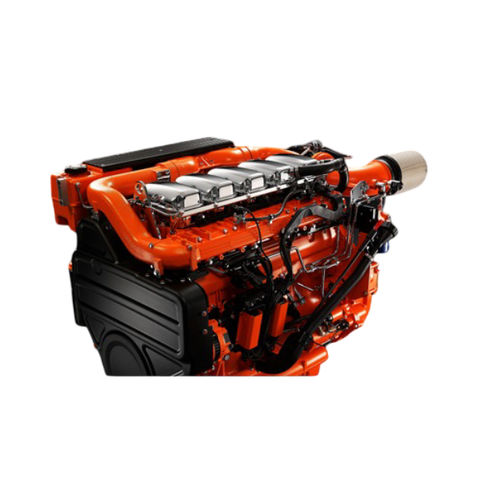

Diesel engine DI13 071M

6-cylinderturbochargedin-line

The marine engines from Scania are based on a robust design with a strength optimised cylinder block containing wet cylinder liners that can easily be exchanged. Individual cylinder heads with 4 valves per cylinder promotes repairability and fuel economy. The engines are type approved in all major classification societies. The engine is equipped with a Scania developed Engine Management System, EMS, in order to ensure the control of all aspects related to engine performance. The injection system is based on electronically controlled unit injectors that gives low exhaust emissions with good fuel economy and a high torque already at low revs. The engine can be fitted with many accessories such as air cleaners, PTOs, transmissions and type approved instrumentation in order to suit a variety of installations. Standard equipment • Unit injectors, PDE • Turbocharger • Fuel pre-filter with water separator • Fuel filter • Oil filter, full flow • Centrifugal oil cleaner • Oil cooler, integrated in block • Oil filler, in engine block • Oil dipstick, in block • Starter, 2-pole 7.0 kW • Alternator, 2-pole 100A • Flywheel SAE 14 • Silumin flywheel housing, SAE 1 flange • Front-mounted engine brackets • Protection covers • Closed crankcase ventilation • Operator’s manual Optional equipment • Hydraulic pump • Side-mounted PTO • Front-mounted PTO • Exhaust connections • Electrical base system • Control and instrument panels • Accelerator position sensor • Engine heater • Power pack engine bracket • Stiff rubber suspension • Air cleaner • Studs in flywheel housing • Reversible fuel filter • Low coolant level reaction • Variable idle speed setting
