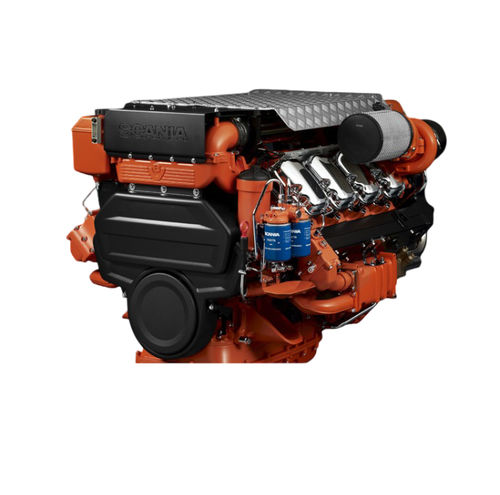

Diesel engine DI16 070M

8-cylinderturbochargedmarine

The marine engines from Scania are based on a robust design with a strength optimised cylinder block containing wet cylinder liners that can easily be exchanged. Individual cylinder heads with 4 valves per cylinder promotes repairability and fuel economy. The engines are type approved in all major classification societies. The engine is equipped with a Scania developed Engine Management System, EMS, in order to ensure the control of all aspects related to engine performance. The injection system is based on electronically controlled unit injectors that gives low exhaust emissions with good fuel economy and a high torque already at low revs. The engine can be fitted with many accessories such as air cleaners, PTOs, transmissions and type approved instrumentation in order to suit a variety of installations. Standard equipment • Unit injectors, PDE • Twin turbochargers, heat insulated • Fuel pre-filter with water separator • Fuel filter • Oil filter, full flow • Centrifugal oil cleaner • Oil cooler, integrated in block • Oil filler, in valve cover • Deep front oil sump • Oil dipstick, front • Starter, 2-pole 7.0 kW • Alternator, 2-pole 100A • Flywheel SAE 14 • Silumin flywheel housing, SAE 1 flange • Front-mounted engine brackets • Catwalk and cover for belt transmission • Closed crankcase ventilation • Sea water charge air cooler • Sea water pump • Dual heat exchangers with expansion tanks • Operator’s manual Optional equipment • Electrical base system • Accelerator position sensor • Control panel • Instrument panel • Scania EMS display • Hydraulic pump • Side-mounted PTO • Front-mounted PTO • Exhaust connections • Engine heater
