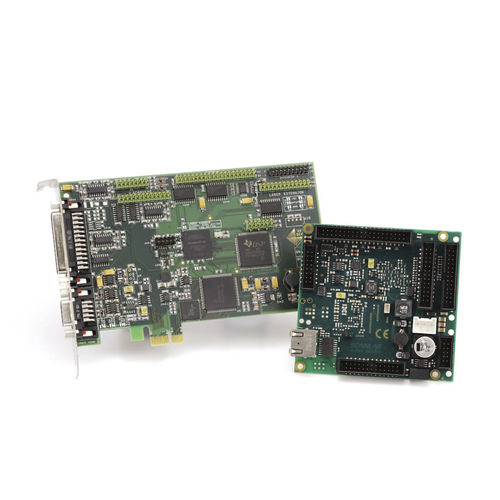

Synchronous motion control card RTC4

EthernetembeddedPCI

Control and Versatility The RTC4 series of control boards is available with two different interfaces • PCI Express (RTC4 PCIe) • Ethernet (RTC4 Ethernet) These boards enable synchronous, real-time control of scan systems and lasers. Included DLLs facilitate straightforward program development under Windows. Every 10 μs, a 16-bit control signal is transmitted to the scan system. The RTC board´s processor performs vital steps such as micro-vectorization and image field correction. High Flexibility System integrators can access various programmable laser signals for vector or bitmap processing. And a multitude of available options (e.g. 3D, galvanically isolated laser signals, processing-on-the-fly) provides maximum flexibility. With the RTC4 Ethernet control boards end customers can connect their own PCs/laptops via Ethernet.
