XY scanning system XL SCAN

cuttinglaser

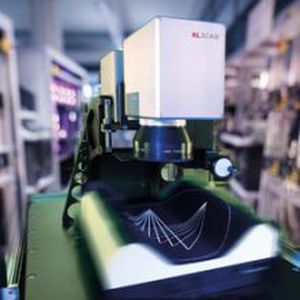

Highest Accuracy for Large-Surface Micromachining XL SCAN is a scan solution for synchronously controlling a 2D scan head and two mechanical axes, for example an XY stage with two servo axes. The system was co-developed by SCANLAB and ACS Motion Control and provides a virtually limitless working area. XL SCAN is ideally suited not only to micromachining of extensive areas, but also for cutting large films and drilling PCBs in electronics manufacturing. Moreover, the use of tracking-error-free excelliSCAN scan heads and smart syncAXIS software assures highest precision for the application. Key Features • Virtually limitless working area • Highest accuracy • No stitching errors • Increased productivity • Simulation of jobs makes laser process optimization easy • Automatic laser control, e.g. Spot Distance Control (SDC) • Highly dynamic processing without stage vibration • Flexible configuration possibilities (e.g. multi-head systems, multiple software instances) Throughput Optimization XL SCAN's contributors to enormously boosted throughput include optimized control and servo mechanisms – such as synchronous control or look-ahead trajectory planning – as well as the possibility of multi-head systems. Highest Accuracy This synchronized scan solution avoids stitching errors and compensates workpiece vibration. The totally new smart control approach considers the physical limits of table and scan head in trajectory planning. XL SCAN's precision thereby exceeds that of other combined-control systems on the market. Additionally, the syncAXIS control software's trajectory planning supports advanced control of modern ultra-short pulse (USP) lasers.
