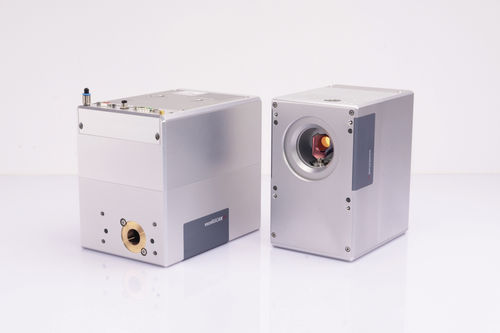

2-axis laser scanner head excelliSCAN 14

for laser micromachiningfor deep engravingfor medical applications

Excellent Performance SCANLAB offers excelliSCAN in combination with the RTC6 PCI Express control board. With its substantially enhanced processing power and support for optimal utilization of SCANahead control technology, the RTC6 opens up new possibilities for system control. the premium scanning standard excelliSCAN excelliSCAN scan heads set new standards for the most demanding laser scanning requirements. These high performance 2D scan systems offer highly dynamic and accurate positioning of the laser beam in the working plane. With its high-end design, the excelliSCAN achieves an unprecedented level of performance in terms of dynamics and precision, resulting in a significant increase in productivity and process accuracy. Key features • SCANahead control: full utilization of scanner dynamics for higher throughput • dynAXISse digital-encoder galvanometers • Innovative housing concept with improved thermal management, improved tightness (IP66) and robustness Typical applications • Micromachining • Additive manufacturing (3D printing) • Laser cutting Advantages of the excelliSCAN Series Typical Applications Micromachining Laser cutting 3D printing SCANahead Control excelliSCAN systems are equipped with SCANahead control, which offers the following advantages: • Full utilization of galvo dynamics for increased throughput • No tracking error, even at high speeds • Fast marking of circles without necking effects dynAXISse Galvanometer Scanner The excelliSCAN is based on the latest generation galvanometer scanner technology, enabling excellent contour fidelity even for demanding scan jobs:
