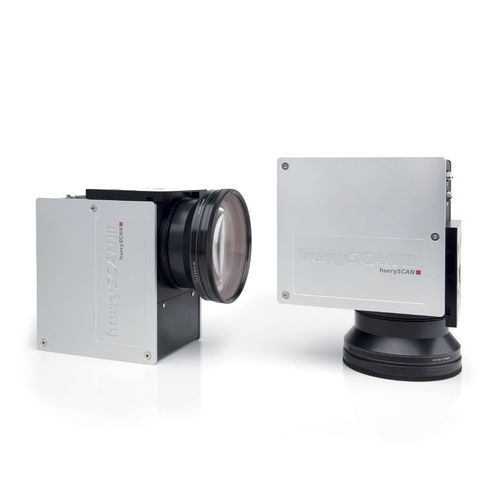

2-axis laser scanner head hurrySCAN 20

for markingfor materials processingcompact

universal and compatible These compact scan heads from SCANLAB provide optimal solutions for nearly all challenges found in industrial laser materials processing. The mechanically and electrically inter-compatible scan heads have apertures ranging from 7 to 30 mm and various levels of dynamics. High long-term stability and low drift values are ensured via integrated temperature stabilization. SCANLAB has products for practically every customer need. Smallaperture systems optimally combine top speed and exceptional precision. Marking speeds exceeding 1000 characters per second can be achieved. Also available are large-aperture scan heads offering small spot size, high speed and laser-power handling up to the multikilowatt range. The housing concept as well as tight manufacturing and assembly tolerances bring high flexibility and certainty to the design and operation of laser materials processing systems. This also facilitates speedy adaptation to individual customer requirements. hurrySCAN III scan heads take advantage of the new dynAXIS3 series galvanometer scanners. In conjunction with new electronics, these galvos deliver highest dynamic performance, lowest drift and best linearity. Typical Applications: • Materials processing • Marking • Microstructuring • Rapid manufacturing • 3D applications • Processing-on-the-fly Optics Scan mirrors and objectives with optimized mounts are available for all typical laser types and working fields. To optimally utilize standard objectives, the hurrySCAN 25’s two scan axes have differing maximum scan angles. This results in an elliptical image field with the larger semi-axis perpendicular to the entrance beam axis.
