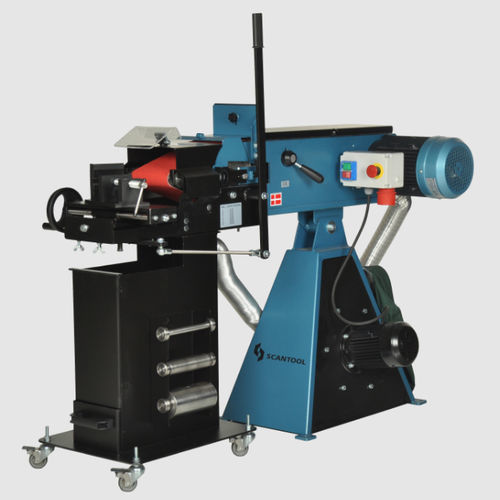

Variable-angle notching machine SCANTOOL 150RBX
for pipe

Variable-angle notching machine - SCANTOOL 150RBX - Scantool Group - for pipe
Variable-angle notching machine - SCANTOOL 150RBX - Scantool Group - for pipe
Variable-angle notching machine - SCANTOOL 150RBX - Scantool Group - for pipe - image - 2
Variable-angle notching machine - SCANTOOL 150RBX - Scantool Group - for pipe - image - 3
Variable-angle notching machine - SCANTOOL 150RBX - Scantool Group - for pipe - image - 4
Add to favorites
Compare this product


Characteristics

Type
variable-angle
Applications
for pipe
Motor power

4.8 ch
(4.8 hp)

Weight

154 kg
(339.51188 lb)

Description

Scantool 150RBX is, first and foremost, a pipe notchers which grind pipes of all types (round, square, solid) and with diameters of between 17 mm and 100 mm. However, the RBX models are more than just efficient pipe grinders. They can be converted into a normal belt sander in just minutes when all pipe grinding tasks are finished.They can then be used for standard grinding tasks. If you need to grind the pipes with a centreless grinder, you can attach the centreless unit onto the 75 model: 3 grinding processes in one machine. Model RBX is delivered complete with built-in exhaust system. Product Specifications Rpm 2800 Voltage 3x400V-50 Hz Motor (HP) 4,8 Grinder Belt (mm) 150x2250 Saw speed (m/min) 30 Pipe dimension (ø mm) 17-100 Grinding table (mm) 150x605 Exhaust (m³/h) 600 Grinding angles 0-60° Number of spindle speeds 1 On Pedestal 1 With exhaust 1 Length (mm) 1350 Width (mm) 570 Height (mm) 1020 Net weight (kg) 154
