Notching machine SCANTOOL 150RB

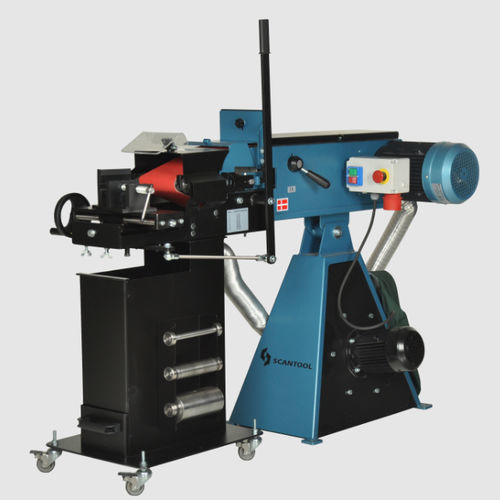

Notching machine - SCANTOOL 150RB - Scantool Group
Notching machine - SCANTOOL 150RB - Scantool Group
Notching machine - SCANTOOL 150RB - Scantool Group - image - 2
Notching machine - SCANTOOL 150RB - Scantool Group - image - 3
Notching machine - SCANTOOL 150RB - Scantool Group - image - 4
Add to favorites
Compare this product


Characteristics

Motor power

4.8 kW
(6.53 hp)

Weight

140 kg
(308.64717 lb)

Description

Scantool 150RB is, first and foremost, a pipe notcher which grind pipes of all types (round, square, solid) and with diameters of between 17 mm and 100 mm. However, the RB models are more than just efficient pipe grinders. They can be converted into a normal belt sander in just minutes when all pipe grinding tasks are finished. They can then be used for standard grinding tasks. If you need to grind the pipes with a centreless grinder, you can attach the centreless unit onto the 75 model: 3 grinding processes in one machine. Exhaust: Model RBX is delivered complete with built-in exhaust system. Product Specifications Rpm 2800 Voltage 3x400V-50 Hz Grinder Belt (mm) 150x2250 Saw speed (m/min) 30 Pipe dimension (ø mm) 17-100 Grinding table (mm) 150x605 Grinding angles 0-60° Number of spindle speeds 1 On Pedestal 1 Without exhaust 1 Length (mm) 1350 Width (mm) 570 Height (mm) 1020

VIDEO
