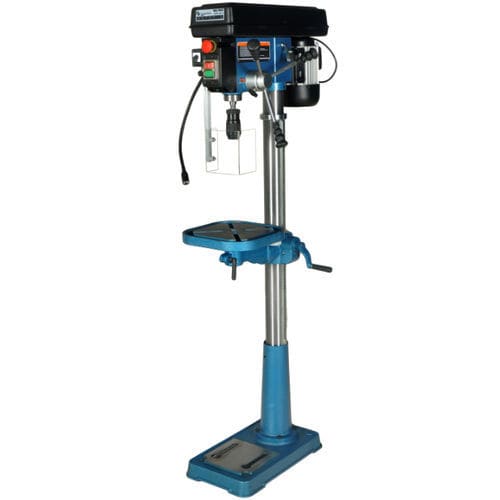

Driver drill SCANTOOL 16ATF

electricconstruction

SCANTOOL 16AEF & 16ATF are professional drill presses for workshop and industry. Standard features: • Morse Taper No. 2 • Reversible spindle rotation • Complete with auto lock chuck • Separate emergency stop and working light • For max. safety when changing the belt speed the machines are supplied with safety switch. • Safety guard complete with micro switch • Designed for both home workshop and industrial use • The Scantool drill presses are specially produced by one of the largest factories in the world, using advanced technology on semi-automatic production lines • The simple construction ensures high quality, easy operation and a long life • The table is tilt-able with degree scale. • 400 V models are reversible. • Competitively priced. Product Specifications Drill chuck (mm) 16 Max. tilt of table (+/-) 45° Throat depth (mm) 190 Swing Capacity (mm) 410 (14") Max. distance spindle/table (mm) 720/1210 Size of table (mm) 285x285 Size of base (mm) 480x270 Max. spindle travel (mm) 80 Number of spindle speeds 12 Reversible 1 On Pedestal 1 Height (mm) 1600 Net weight (kg) 67
