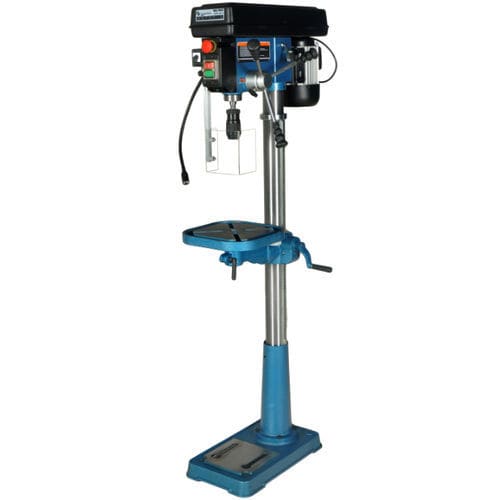

SCANTOOL 16AEF & 16ATF are professional drill presses for workshop and industry.
Standard features:
• Morse Taper No. 2
• Complete with auto lock chuck
• Separate emergency stop and working light
• For max. safety when changing the belt speed the machines are supplied with safety switch.
• Safety guard complete with micro switch
• Designed for both home workshop and industrial use
• The Scantool drill presses are specially produced by one of the largest factories in the world, using advanced technology on semi-automatic production lines
• The simple construction ensures high quality, easy operation and a long life
• The table is tilt-able with degree scale.
• 400 V models are reversible.
• Competitively priced.
Product Specifications
Drill chuck (mm)
16
Throat depth (mm)
190
Swing Capacity (mm)
410 (14")
Max. distance spindle/table (mm)
720/1210
Size of table (mm)
285x285
Size of base (mm)
480x270
Max. tilt of table (+/-)
45°
Max. spindle travel (mm)
80
Number of spindle speeds
12
On Pedestal
1
Height (mm)
1600
Net weight (kg)
67
