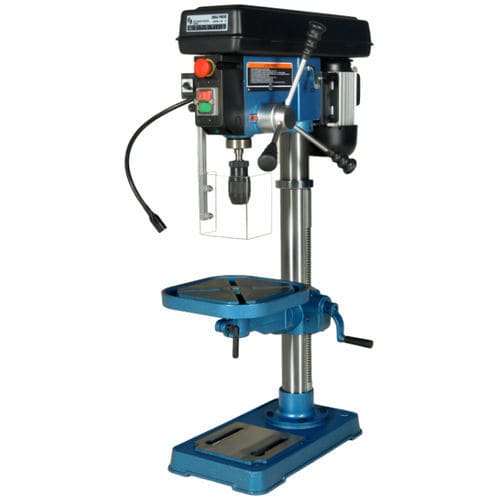

Driver drill SCANTOOL 16AT

electric

SCANTOOL 16AE & 16AT are professional drill presses for workshop and industry Standard features: Morse Taper No. 2 Reversible spindle rotation Complete with auto lock chuck Separate emergency stop and working light For max. safety when changing the belt speed the machines are supplied with safety switch. Safety guard complete with micro switch The Scantool drill presses are specially produced by one of the largest factories in the world, using advanced technology on semi-automatic production lines The table is tilt-able with degree scale. 400 V models are reversible. Competitively priced. Product Specifications Rpm 180-2740 Voltage 3x400V - 50 Hz Motor (HP) 1,0 Motor (kW) 0,75 Drilling Capacity (ø mm) 1-20 Drill chuck (mm) 16 Throat depth (mm) 190 Swing Capacity (mm) 420 (14") Max. distance spindle/table (mm) 465/685 Size of table (mm) 285x285 Size of base (mm) 480x270 Max. tilt of table (+/-) 45° Max. spindle travel (mm) 80 Number of spindle speeds 12 Reversible 1 Bench model 1 Height (mm) 1065 Net weight (kg) 61
