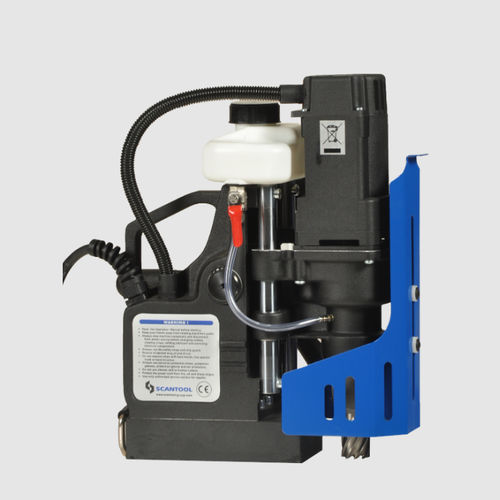

CNC drilling machine 36

for railscompactmagnetic

The most compact machine designed from SCANTOOL, and one of the smallest units in the world. COMPACT 36 is equipped with the latest generation of magnetic field shape control system (MFSC) and magnetic power adhesion control module (MPAC), which detects adhesive force of electromagnetic base and protects both the machine and the operator from work on too thin workpiece. COMPACT 36 is also equipped with motor overload protection system. Superior features of COMPACT 36 include: • Ultra light weight • Gear box and slide system made of one piece • Purpose designed motor with heavy duty gear box • Maintenance friendly design • Maintenance free rail guide system Product Specifications Weldon shaft (mm) 19,05 Drilling Depth (mm) 52 Magnet lift (N) 9500 Magnetic base (mm) 80x160 Throat depth (mm) 39 Length (mm) 240 Width (mm) 167 Height (mm) 376/306
