Vertical drilling machine 50
for railscompactmagnetic

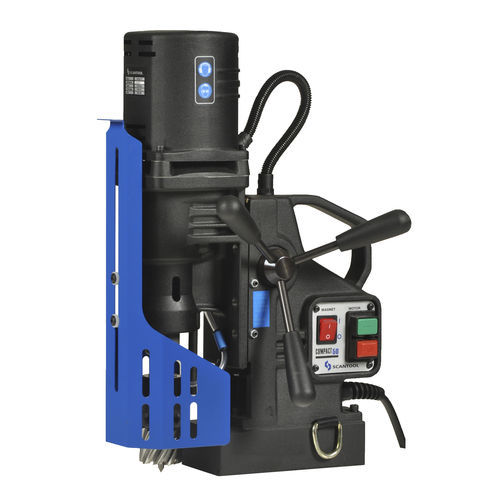

Vertical drilling machine - 50 - Scantool Group - for rails / compact / magnetic
Vertical drilling machine - 50 - Scantool Group - for rails / compact / magnetic
Vertical drilling machine - 50 - Scantool Group - for rails / compact / magnetic - image - 2
Vertical drilling machine - 50 - Scantool Group - for rails / compact / magnetic - image - 3
Vertical drilling machine - 50 - Scantool Group - for rails / compact / magnetic - image - 4
Add to favorites
Compare this product


Characteristics

Structure
vertical
Applications
for rails
Other characteristics
compact, magnetic
Drilling diameter

50 mm
(1.97 in)

Power

1,300 W

Rotational speed

200 rpm, 400 rpm
(1,256.6 rad.min-1, 2,513.3 rad.min-1)

Weight

16 kg
(35 lb)

Description

COMPACT 50 is equipped with the latest generation of electromagnetic energy saving base (ESB) with magnetic field shape control system (MFSC) and magnetic power adhesion control module (MPAC), which detects adhesive force of electromagnetic base and protects both the machine and the operator from work on too thin workpieces. Unique semi-automatic gib adjustment system enables simple and fast fine tuning without any expert knowledge or experience. Replaceable spline at the end of armature shaft eliminates laborious and expensive maintenance. Superior features of COMPACT 50 include: - Compact design - Gear box and slide system made as one piece - Excellent ratio weight / power - Maintenance friendly design - Purpose designed motor with heavy duty gear box - Maintenance friendly rail guide system - Built-in cooling system Product Specifications Voltage 1x230V-50 Hz Drilling Depth (mm) 50 Magnetic base (mm) 90x180 Magnet lift (N) 12000 Throat depth (mm) 45 Morse Taper 2 Length (mm) 297 Width (mm) 206 Height (mm) 426/579
