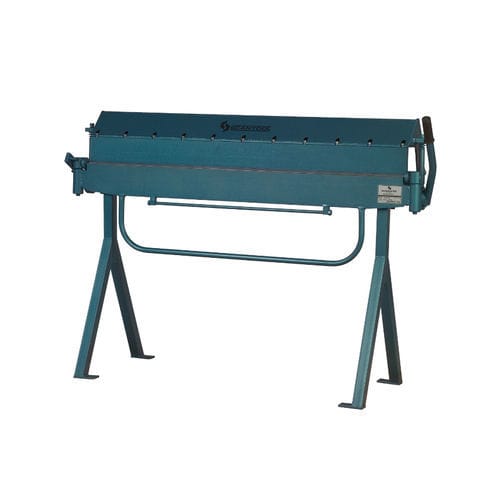

Sheet metal folding machine SCB 1300

manual

SCANTOOL SCB 700 - 1300 folding machines are light, easy to operate, manual machines particularly suited for folding of the thin sheet metals. The machines are offered with clamping bar: H - high and narrow for U-profile. It is easy to remove the under-frame for transportation or bench mounting. A special bench-mounting kit is offered as optional equipment. All folding machines can now be easily convert from SCA - low to SCB - high or SCST - with segments with the additional tooling. Product Specifications Sheet thickness steel (mm) 1,2 Working length (mm) 1300 Bending angle 93° Max. Opening (mm) 40 Length (mm) 1495 Width (mm) 500 Height (mm) 1040 Net weight (kg) 107
