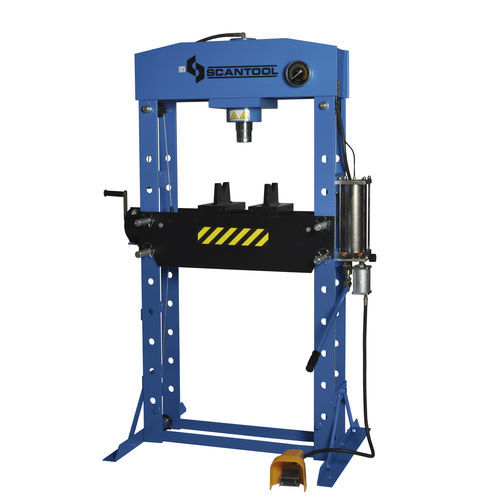

Hydraulic press WSP 50Ppneumaticformingwith pedal control
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, pneumatic
- Function
- forming
- Other characteristics
- with pedal control
- Force
50 tf
- Opening
Max.: 1,048 mm
(41 in)Min.: 68 mm
(3 in)- Stroke
200 mm
(7.874 in)- Max. pressure
1 MPa
- Working speed
1 mm/s
- Weight
310 kg
(683 lb)- Overall length
1,030 mm
(41 in)- Overall width
800 mm
(31 in)- Overall height
1,904 mm
(75 in)
Description
Pneumatic/hydraulic operated workshop press Model WSP 50P.
Can be operated both pneumatically with foot pedal and manually with handle
Standard Equipment
• Moveable cylinder
• Standard with winch for fast og safe adjustment of the position of the table.
• Easy to read pressure gauge
• Long stroke
• 2 pcs. V-blocks
• Rapid approach and return
• Sturdy quality
• Operator friendly design
Extra accessories
• Pressing pins - 8 pcs (3, 8, 12, 14, 16, 18, 20mm)
• Safety guarding.
