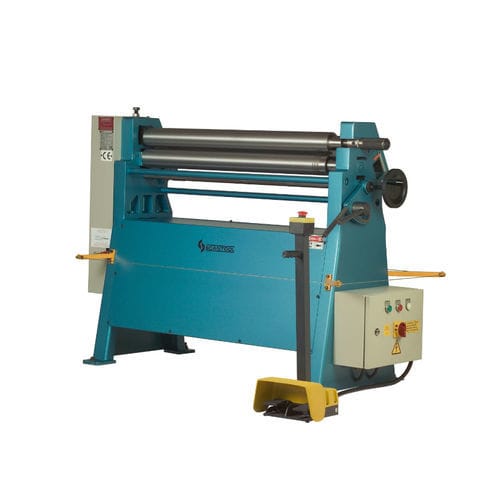

This model is designed for light to medium jobs. It is perfect for aluminum bends and the ventilation industry. The price is attractive and it can be used for many different applications.
• Cast iron main frames
• Main motor with brake
• Rotatable top roller
• Motor-powered centralized rollers
• Conical bending, pre-bending avaiable
• Wired grooves
• Mobile control panel
• Built according to EU safety directives
• Rollers of SAE 1050 quality steel with high tensile strength
Special Accessories
• Hardened and honed rollers
• Motorised back roll adjustment (only EBR 1040x3,0).
• 3x220/380V-50Hz Voltage
Product Specifications
Voltage
3x400V-50/60Hz
Motor (HP)
2,0
Motor (kW)
1,5
Min. Bending diameter (ø mm)
143
Roller diameter (ø mm)
95
Roller speed (m/min.)
7
Length (mm)
2650
Width (mm)
750
Height (mm)
1200
Net weight (kg)
800
