Pipe grinding polishing machine ARBOGA 75 CGC

tubefor steelbelt

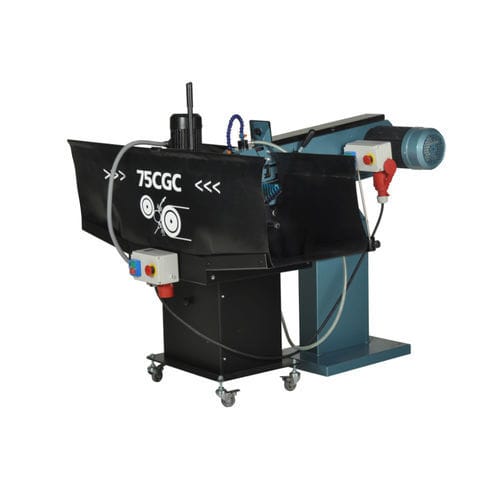

ARBOGA 75 CGC Centerless grinding and polishing machine is the perfect machine for polishing stainless pipes and tubes with it's 2 speed motor and built-in coolant system. But it grinds and polishes of course also all other kind of steel pipe and tubes ! The centerless grinder is easy to operate and grinds/polishes all pipes and tubes with diameters between 10 to 120 mm. ARBOGA 75 CGC is supplied with a 2 speed motor where the high speed is used for cleaning the pipes with grinding belts in grit 60-80. Low speed is used for polishing and finishing and it is possible to obtain a finish of RA 0,1 by use of our Start Package of grinding belts. Support stands are available as accessory for long pipes and tubes. Product Specifications Motor (HP) 4,1/4,8 Rpm 1400/1800 Voltage 3x400V-50 Hz Gear NMRV030 Wheel size, Drive wheel (ø mm) 200x75x24 Wheel size, Conctact wheel (ø mm) 200x75x20 Grinder Belt (mm) 75x2000 Belt speed (m/sec) 15/30 Grinding table (mm) 605 Support roller (mm) 35x90x23 Wheel size, Polishing wheel (ø mm) 50x150x25 Pipe dimension (ø mm) 10-120 Without exhaust 1 Length (mm) 1300 Width (mm) 1220 Height (mm) 950 Net weight (kg) 140
