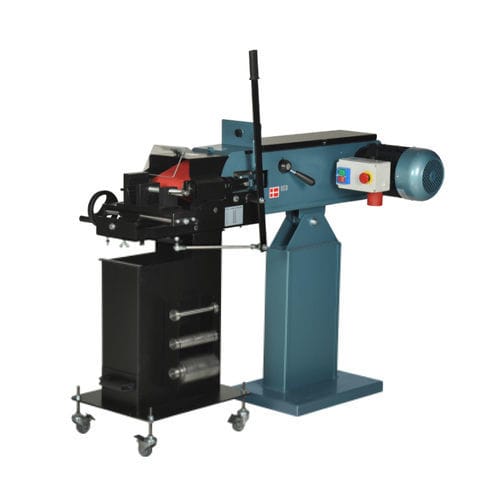

Variable-angle notching machine ARBOGA 150 RB

for pipe

ARBOGA 150 RB is, first and foremost, a pipe notcher which grind pipes of all types (round, square, solid) and with diameters of between 17 mm and 100 mm. However, the 150 RB and RBX models are more than just efficient pipe grinders. They can be converted into a normal belt sander in just minutes when all pipe grinding tasks are finished. They can then be used for standard grinding tasks. If you need to grind the pipes with a centreless grinder, you can attach the centreless unit onto the 75 model: 3 grinding processes in one machine. Model RBX is delivered complete with built-in exhaust system. Product Specifications Voltage 3x400V-50 Hz Wheel size, Drive wheel (ø mm) 200x150x28 Wheel size, Contact wheel (ø mm) 200x150x20 Belt speed (m/sec) 30 Grinder Belt (mm) 150x2250 Grinding table (mm) 150x605 Pipe dimension (ø mm) 17-100 Grinding angles 0-60° Without exhaust 1 Length (mm) 1350 Width (mm) 570 Height (mm) 1020
