Metal grinding polishing machine SCANTOOL 75 CG
belt

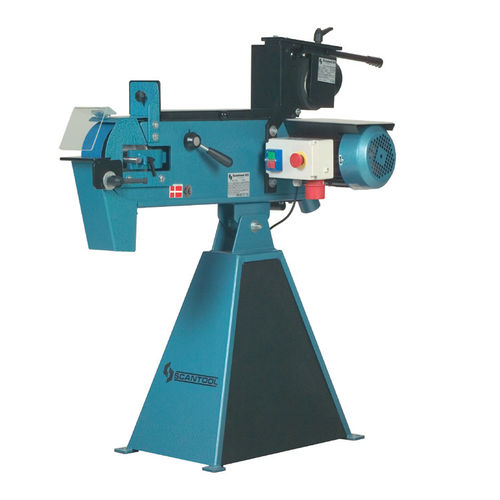

Metal grinding polishing machine - SCANTOOL 75 CG - Scantool Group - belt
Metal grinding polishing machine - SCANTOOL 75 CG - Scantool Group - belt
Metal grinding polishing machine - SCANTOOL 75 CG - Scantool Group - belt - image - 2
Metal grinding polishing machine - SCANTOOL 75 CG - Scantool Group - belt - image - 3
Metal grinding polishing machine - SCANTOOL 75 CG - Scantool Group - belt - image - 4
Metal grinding polishing machine - SCANTOOL 75 CG - Scantool Group - belt - image - 5
Add to favorites
Compare this product


Characteristics

Treated material
metal
Other characteristics
belt

Description

Scantool 75 CG centerless grinding and polishing machines are supplied with an attachment which can be mounted on all belt grinders with a 75x2000 mm belt and with a large grinding surface on top. The centerless grinding attachment is easy to operate and grinds/polishes all pipes and tubes with diameters of between 6 and 120 mm. Scantool 75 CG centerless grinding and polishing machines are unique compared to other centerless grinders on the market because they remain a belt grinder even when the centerless grinding attachment is mounted. It is not necessary to take off the centerless attachment when using the belt grinder for normal grinding work. Both the contact wheel and the flat grinding surface on top are available for normal grinding and polishing even with the attachment on the machine. Centerless belt grinder is available with and without dust extraction. Standard version - grinding and polishing of tubes with diameters of between 20 and 120 mm and with the optional teflon support ø6 -120mm. Product Specifications Voltage 3x400V-50 Hz Number of spindle speeds 1 On Pedestal 1 Without exhaust 1 Length (mm) 105 Width (mm) 70 Height (mm) 115 Net weight (kg) 80

VIDEO
