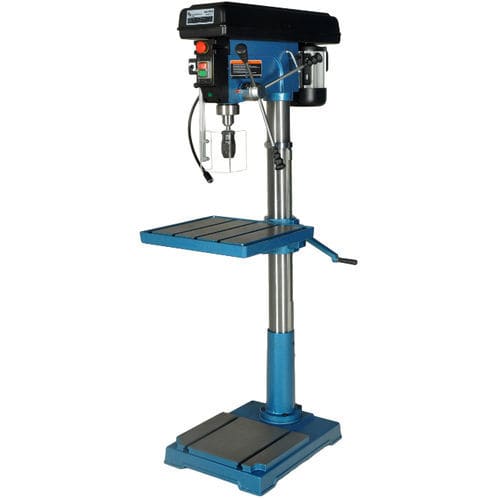

Driver drill SCANTOOL 25A

electricconstruction

SCANTOOL 25A is a professional drill press for workshop and industry. Standard features: • Morse Taper No. 4 • Reversible spindle rotation • Large working table • Complete with auto lock chuck • Separate emergency stop and working light • For max. safety when changing the belt speed the machines are supplied with safety switch. • Safety guard complete with micro switch • Designed for both home workshop and industrial use • The Scantool drill presses are specially produced by one of the largest factories in the world, using advanced technology on semi-automatic production lines • The simple construction ensures high quality, easy operation and a long life • The table is tilt-able with degree scale. • 400 V models are reversible. • Competitively priced. Product Specifications Rpm 120-3480 Voltage 3x400V - 50 Hz Motor (HP) 1,5 Motor (kW) 1,1 Drilling Capacity (ø mm) 1-32 Drill chuck (mm) 16/B16 Max. spindle travel (mm) 120 Throat depth (mm) 254 Swing Capacity (mm) 550 Max. distance spindle/table (mm) 710/1180 Size of table (mm) 475/425 Size of base (mm) 575x445 Max. tilt of table (+/-) 45° Number of spindle speeds 12 Reversible 1 On Pedestal 1 Height (mm) 1700 Net weight (kg) 125
