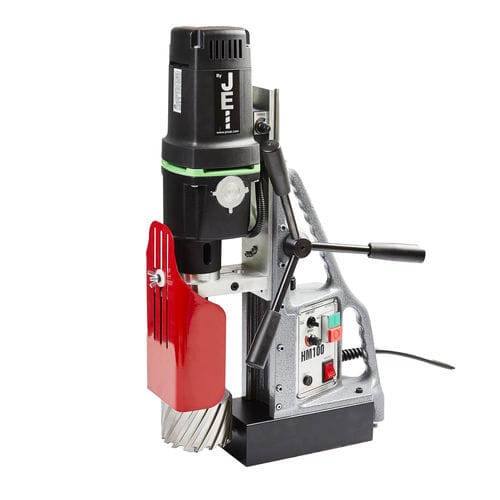

The MAGBEAST magnetic drilling machine is designed for precision and power. With a drilling capacity of up to 100 mm and a powerful 1800-watt motor, it easily handles the most demanding drilling tasks. Operating at a voltage of 230V, this machine offers a variable speed range of 60-140 and 200-470 RPM, providing versatility for different materials and applications.
Equipped with a Weldon shank of 19 mm and a drilling depth of up to 250 mm, it is perfect for heavy-duty industrial use. The machine also supports thread cutting up to M30 and comes with a Morse Taper 3 and a B18 drill chuck. With a magnetic holding force of 20,100 N, it ensures stability and safety during operation. Despite its robust build, the MAGBEAST keeps noise levels below 90 dB, offering a quieter working environment. At a weight of 23.5 kg, it is portable yet durable for long-term use.
Product Specifications
Weldon shaft (mm)
Ø19
Tapping Capacity
M30
Drill chuck (mm)
B18
Drilling Depth (mm)
250
Morse Taper
3
Magnet lift (N)
20100
Noise level (dB)
Less than 90
Net weight (kg)
23,5
