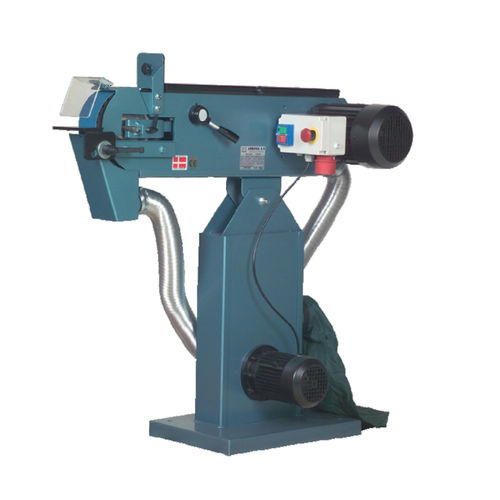

Double grinding machine ARBOGA 150X

The Belt grinding machine model ARBOGA 150X is an efficient quality machines with built-in double dust extraction system manufactured in accordance with the most strict enviromental- and health and safety regulations. Standard machines are equipped with a motor brake, separate emergency stop, adjustable emergency stop, adjustable top work support, eye shield, thermal overload no-volt release starter. The machines are suitable for grinding all metals, they are CE-approved and have a low level of noise. • Powerful motors 4,8 HP • Enclosed grinding head ensures a very effective extraction system • Built-in double dust extraction system • Thermal Overload No Volt Release starter • Separate emergency stop • Electronic Motor-brake • Adjustable top work support • Eye protection • The working height can be set to the most optimum position • Unique design for clean, quick and safe grinding • Self-adjusting belt tensioner • Danish top quality. Product Specifications Voltage 3x400V-50 Hz Grinding table (mm) 150x605 Wheel size, Conctact wheel (ø mm) 200x150x20 Wheel size, Drive wheel (ø mm) 200x150x28 Grinder Belt (mm) 150x2000 Belt speed (m/sec) 34 With exhaust 1 Exhaust (m³/h) 630 Length (mm) 1025 Width (mm) 600 Height (mm) 1000 Net weight (kg) 114
