RF connector GA Series
DINcircularscrew-in

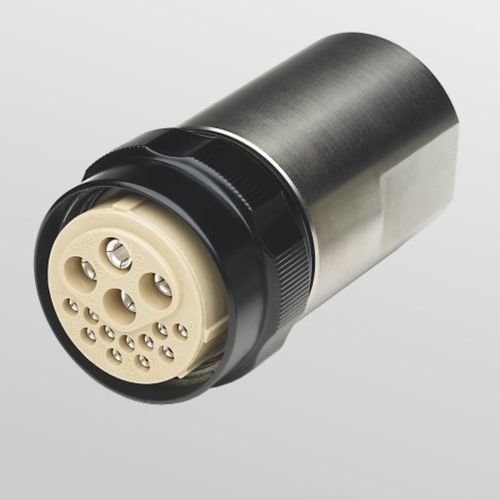

RF connector - GA Series - Schaltbau GmbH - DIN / circular / screw-in
RF connector - GA Series - Schaltbau GmbH - DIN / circular / screw-in
Add to favorites
Compare this product


Characteristics

Type
RF
Format
DIN
Shape
circular
Connection type
screw-in
Electrical characteristics
4-pole
Material
aluminum
Domain
industrial
Protection class
IP67, IP69K
Other characteristics
IEC, custom
Primary current

16 A, 50 A

Voltage

25 V, 60 V, 400 V

Description

The 15 pole circular connector has a housing made of high strength aluminium magnesium alloy. The contact arrangement is a combination of 4 power contacts and 11 control contacts. The thermoset contact inserts allow the connector to be used for a wide temperature range. Cable-connecting and flange mount plugs and receptacles with different threads for cable glands are available as stock items. Protection caps are available as accessory. Special variants upon request! Features: High-quality robust metal housing 4 power and 11 control contacts Functional threaded coupling with polarized key and keyway construction for easy and reliable connection Receptacles watertight to IP67/IP69K when mated and unmated Resistant to corrosive liquids Electrical and mechanical characteristics to IEC 61984 Applikationen Machine tool building
