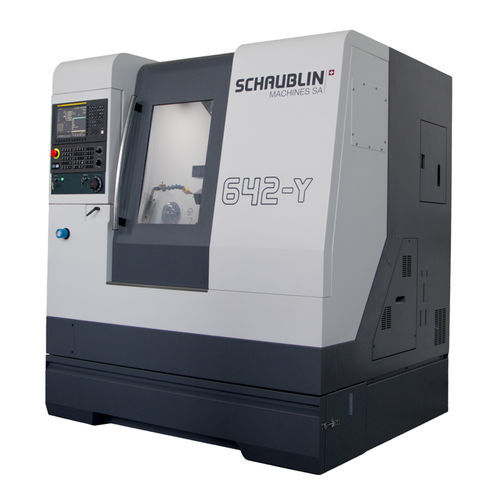

CNC turning center 6 seriesA2-512 toolshigh-precision
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle mount
- A2-5
- Number of tool stations
- 12 tools
- Performance
- high-precision
- Other characteristics
- Y-axis
- Diameter
270 mm
(10.63 in)- Spindle speed
Max.: 6,000 rpm
(37,699.112 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Maximum part length
350 mm
(14 in)- Bar capacity
32 mm
(1 in)- Axe X
350 mm
(14 in)- Nominal power
7.5 kW, 15 kW
(10.2 hp, 20.4 hp)- Maximum torque
40 Nm, 55 Nm, 110 Nm, 145 Nm
(30 ft.lb, 41 ft.lb, 81 ft.lb, 107 ft.lb)- Overall lenght
1,720 mm
(68 in)- Overall width
1,680 mm
(66 in)- Overall height
1,900 mm
(75 in)- Weight
2,800 kg
(6,173 lb)
Description
Proud successor to the famous Schaublin 110 lathe, with its minimal floor space of 2.4m2, the new 632-Y lathe is the fruit of Schaublin's unique expertise in turning high-precision parts.
Versatile and modular, the Schaublin 632-Y allows the production of simple to highly complex parts. The Schaublin 632-Y is the ideal production tool for the most demanding industries.
