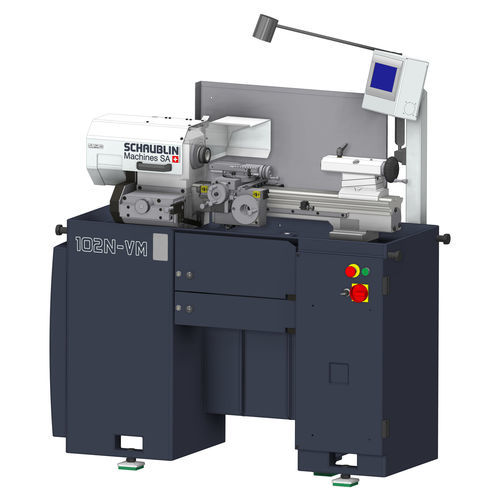

Conventional lathe 102N-VM-CFhorizontal2-axishigh-precision
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Performance
- high-precision
- Diameter
200 mm
(7.87 in)- Spindle speed
Min.: 100 rpm
(628.319 rad.min-1)Max.: 3,000 rpm
(18,849.556 rad.min-1)- Axe X
100 mm
(4 in)- Axe Z
90 mm
(4 in)- Nominal power
4.2 kW
(5.7 hp)- Coolant capacity
23 l
(6 gal)- Overall lenght
1,500 mm
(59 in)- Overall width
510 mm
(20 in)- Overall height
1,550 mm
(61 in)- Weight
660 kg
(1,455 lb)
Description
The SCHAUBLIN 102 is a tried-and-tested product whose qualities and applications are recognized worldwide. Machine with more than 800 mechanical parts and a lead screw particularly well suited to the manufacture of threads and other specialties. W25 collet.
Catalogs
102N-CF / 102N-VM-CF
8 Pages
102 TM-CNC
8 Pages
