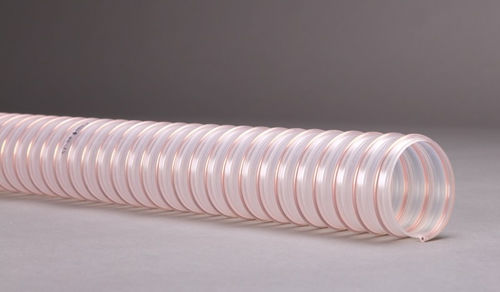

Gas hose FLEXADUX® HT PU 1,4for airpolyurethanesuction
Add to favorites
Compare this product
Characteristics
- Use
- for air, for gas
- Material
- polyurethane
- Applications
- suction, conveying
- Other characteristics
- reinforced, duct
- Inner diameter
Max.: 200 mm
(7.874 in)Min.: 38 mm
(1.496 in)- Outer diameter
Max.: 208 mm
(8.189 in)Min.: 46 mm
(1.811 in)- Pressure
Max.: 2.9 bar
(42.061 psi)Min.: 0.7 bar
(10.153 psi)- Temperature
Max.: 145 °C
(293 °F)Min.: -40 °C
(-40 °F)
Description
Polyurethane hose for high temperature applications
Material:
Polyester- Polyurethane, translucent
Single Length:
10 and 15 m
Temperature Resistance:
– 40° bis + 145° C (short-term 165° C)
Applications:
Suction and conveying of abrasive particles or granules for high temperature applications
Properties:
Very good temperature resistance, very smooth bore, very good abrasion resistance, good flexibility, free of halogen and softeners
Catalogs
No catalogs are available for this product.
See all of SCHAUENBURG Ruhrkunststoff GmbH‘s catalogsOther SCHAUENBURG Ruhrkunststoff GmbH products
FLEXADUX® HT
