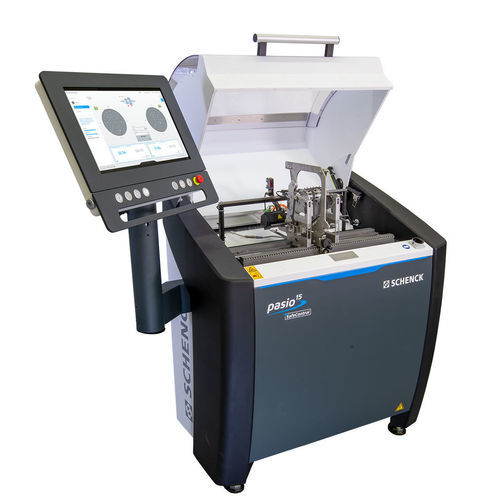

Universal balancing machine Pasio 15

horizontalhard bearingbelt-driven

• Compact design • Minimum space requirement • Fast and uncomplicated set up • Installation without foundations • Highest measuring accuracy • Ergonomic operator concept • Quick change-over from workpiece to the next • Suitable for magnetized rotors Special features • Space-saving single-unit design with integral measuring station and measuring unit • Easy to operate through permanent calibration – requires no calibration runs • Correction in two planes or separate according to static and couple unbalance is possible • Rotors can be mounted on their original shafts or on mounting arbors, complete assemblies can be installed in their housing • Automatic measuring cycle with infinitely variable settings for acceleration, measuring and braking time. Range of application Universal balancing machine Pasio 15 is ideally suited to small work-pieces such as electric armatures – also magnetised - fans and complete assemblies. They are conceived for use in batch production, research and development or in repair shops. Change-over to new rotor types is straightforward and only requires a minimum of time. Unbalance correction is made manually by addition of material (e.g. balancing plasticine) directly on the machine or by removal of material on optional manually operated or semi-automated machining units. Design • Hard-bearing, horizontal balancing machine with permanent calibration
