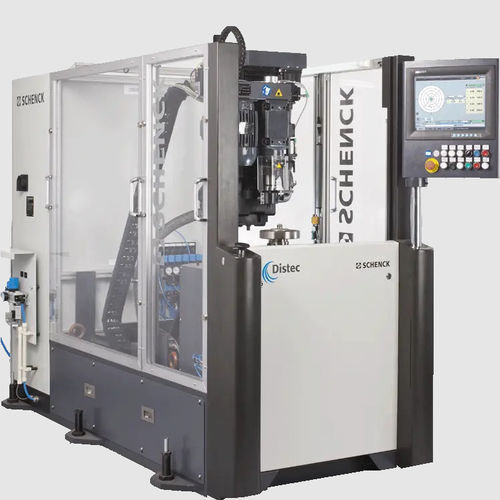

Vertical balancing machine DISTEC Seriesdynamicfor rotorsfor brake discs
Add to favorites
Compare this product
Characteristics
- Orientation
- vertical
- Type
- dynamic
- Applications
- for rotors, for brake discs, for electric motor rotors, pulley, for clutch plates, flywheel, brake drum
- Other characteristics
- automatic, compact
- Rotational speed
Max.: 1,000 rpm
(6,283 rad.min-1)Min.: 600 rpm
(3,770 rad.min-1)- Weight on rotor
30 kg
(66.1 lb)
Description
Compact design
Small space requirement
Quick and uncomplicated starting operation
Can be installed without foundation
Highest measuring accuracy
Ergonomic operating concept
Can be equipped for axial or radial compensation of unbalance
„crane hook solution“
Design
The machine consists of a vertical balancing device with an attached, automatically operating drilling unit. The body to be balanced is clamped on the balancing machine by means of a spring-force actuated receptacle that is pneumatically released. The measuring device CAB 870 is used for determining the unbalance and computation of compensation.
Special features
Short lead time to delivery
Universally applicable
Automatic compensation through axial or radial drilling
Automatic measuring cycle is selectable with stepless, adjustable values for run-up, measuring and braking time
