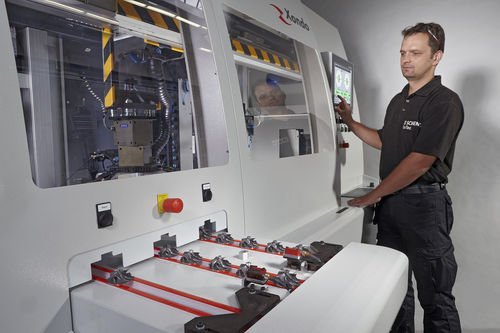

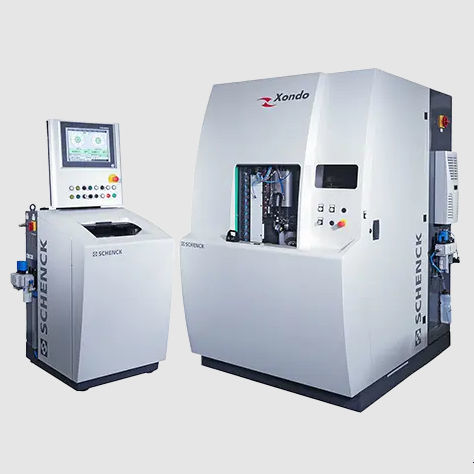

Horizontal balancing machine Xondo series

dynamicfor turbochargersfor turbine wheels

• Fully automatic balancing of turbocharger compressor wheels • Patented air bearing support for extreme measurement accuracy • Digital measured data processing and numerically controlled unbalance correction • Interfacing with loading gantry and commercially available conveying equipment • Easy change over to other rotor types • Short cycle times • Most compact design • Easy movable as a single block • Titanium machining (option) Sequence of operations • The work-piece is taken from the transfer conveyor and loaded into the machine • Automatic measuring run, brake to zero rpm • Remove the rotor from the measuring station and load it into the correction station • Clamp, index to the correction position for the 1st plane, advance the milling cutter to the milling position and control the milling cut. If the unbalance is large the cutter is additionally turned to increase the amount of material removed • Index and move the milling device to the correction position for 2nd plane, repeat the milling process and unclamp • Transfer the rotor to the measuring station and start the check run • Remove the work-piece and unload it to the out-feed conveyor Range of application Measurement and correction of dynamic unbalance of machined turbocharger compressor wheels, use of the machine in mid- to large-volume production. Fully automatic unbalance measurement and correction through polar milling in two planes and with up to two correction steps. Loading and unloading by gantry loader. Design Two-station machine with measuring and correction station and fully automatic operating cycle.
