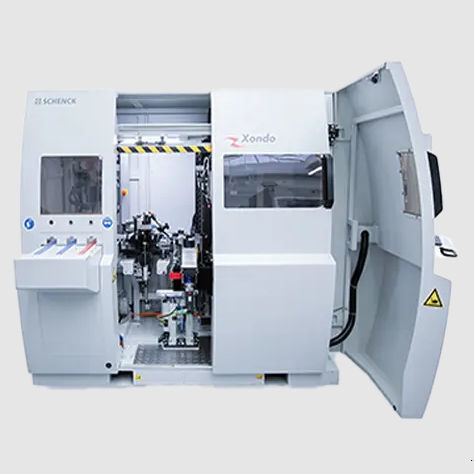

Semi automatic balancing of turbine wheel shaft assemblies
Digital measured data processing and numerically controlled unbalance correction
Easy change over to other rotor types
Short cycle times
Most compact layout
Easy movable
Sequence of operations
The work-piece is loaded into the measuring station.
Automatic measuring run. Calculate and transfer measured values to the correction station, brake to zero rpm
Remove the rotor from the measuring station and load into the correction station.
Automatic correction: clamp, index to the correction position of the 1st plane, controlled grinding of a sector. Index to the corretion position of the 2nd plane, repeat the grinding process and unclamp.
Transfer the rotor to the measuring station and start the check run. If the rotor is not in tolerance after the 1st correction step further correction steps can be carried out.
