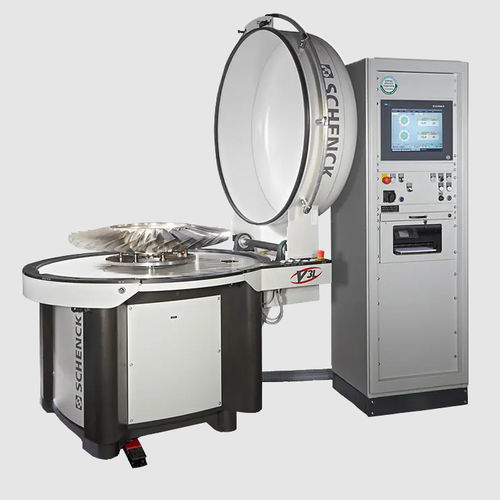

Vertical balancing machine V2 L Series
dynamicfor rotorsfor aeronautical applications

Vertical balancing machine - V2 L Series - SCHENCK RoTec GmbH - dynamic / for rotors / for aeronautical applications
Vertical balancing machine - V2 L Series - SCHENCK RoTec GmbH - dynamic / for rotors / for aeronautical applications
Vertical balancing machine - V2 L Series - SCHENCK RoTec GmbH - dynamic / for rotors / for aeronautical applications - image - 2
Vertical balancing machine - V2 L Series - SCHENCK RoTec GmbH - dynamic / for rotors / for aeronautical applications - image - 3
Add to favorites
Compare this product

Characteristics

Orientation
vertical
Type
dynamic
Applications
for rotors, for aeronautical applications
Rotational speed

2,300 rpm, 2,600 rpm, 3,400 rpm, 4,700 rpm, 4,900 rpm
(14,451 rad.min-1, 16,336 rad.min-1, 21,363 rad.min-1, 29,531 rad.min-1, 30,788 rad.min-1)

Weight on rotor

Max.: 300 kg
(661.4 lb)

Min.: 0.3 kg
(0.7 lb)

Description

• Simple, safe handling and small space requirement • Balancing in one or two planes • No calibration runs required due to permanent calibration • High measurement accuracy through digital processing of measurement values • Protective shrouds according to SAE standards Force-measuring vertical balancing machine with permanent calibration and manual operating sequence. Welded machine housing, balancing unit formed as a dynamometer system, with highly sensitive electro-dynamic transducers, precision balancing spindle and drive motor. Control cabinet with operating elements and microprocessor measuring unit, protective shroud according to ISO 7475. Range of application Measurement and correction of unbalance in one or two correction planes in individual compressor and turbine discs, spacers, etc. for jet engines. The series VE is designed for rotors that need to be balanced in only one plane. These machines are used in manufacturing and overhaul workshops. Simple change over to other rotor types by exchanging tooling adapters and selecting the respective stored rotor file. Manual unbalance correction in or out of the machine.
