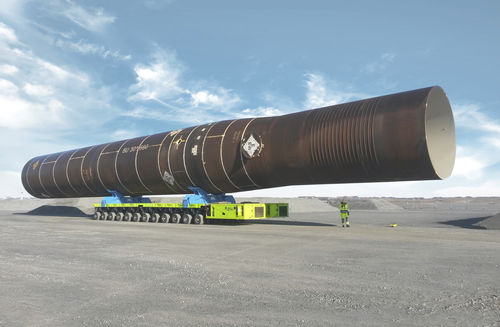

Platform trailer SPMT series

more than 6 axlestowedfor wind turbine

The SCHEUERLE SPMT is a modular, self propelled transporter which can be combined to form any size of vehicle arrangement and thus - since its launch in 1983 - has completely changed the transport sector. Typical loads Due to its modular design, all loads are possible in particular extremely high weights and high point loads Available versions Platforms with 3/4/5/6/8 axles SPMT: Frame M78 with +/- 7785 kNm perm. bending moment SPMT ES: Frame M93 with +/- 9250 kNm perm. bending moment SPMT F: Quick mover with speeds of up to 20 km/h SPMT SL: Split-type vehicle SPMT AC: for ambient temperatures down to – 40°C Available drive types Hydrostatic wheel hub drive through axial-piston motors with downstream planetary drive Available accessories Polyfill tyre filling for increasing tyre load capacities and to prevent puncturing Lateral cross-coupling elements Spacer Bolsters Kippstuhl Telescopic widening for split Scissor-track widening for split Diverse PPU mountings: front side, on top, side-by-side next to PLW Pre-heater assembly (Arctic PPU) Drive units PPU Z180, Z390
