Material preparation station

feedingfor self-leveling media

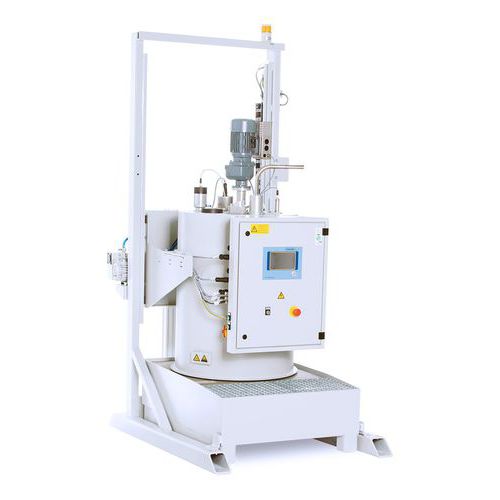

The barrel agitator station developed for 200 l barrels is used in applications with high material consumption. It provides homogenous and tempered potting material and also allows the comprehensive preparation of moisture-sensitive materials from large containers. The basic model is operated in combination with the A310 material preparation and feeding system and is ideal for agitating and tempering self-leveling media. Optionally, the barrel agitator station can be equipped with an eccentric screw pump. In addition to feeding highly viscous media up to 70,000 mPa∙s, this variant also allows the dispenser to be directly fed with potting material without the need of an additional preparation stage by the A310 system. - Bubble-free processing of 200 liter containers - Also suitable for moisture-sensitive media - Consistently homogeneous potting material, even after production breaks - Optional: Vacuum potting at up to 100 mbar possible even without intermediate preparation • Complete evacuation of a 200 liter barrel by way of a powerful vacuum pump • Easy and safe operation thanks to lifting unit, fill-level monitor with two status displays and two-hand safety control • Infinitely adjustable agitation of the potting compound • Temperature control of material tank • Optional: Feeding of potting material directly to the dispenser • Optional: Processing of higher viscosity media of up to 70,000 mPa∙s
