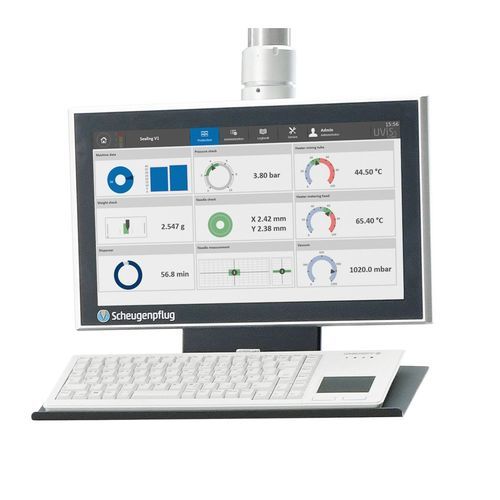

Visualization software UVIS5

controlaxis control2D/3D

The UVIS (universal visualization) interface software is a powerful, state-of-the-art user interface tailored to the application and available to all Scheugenpflug cells, processing modules and vacuum dispensers. It is the ideal solution for the visualization of production and potting systems. The control unit is easy to operate, making it easy to perform all monitoring, maintenance and analysis tasks. The user is therefore able to view all process-relevant data at any time. - Operation tailored to the application thanks to visualization parameter customization - Fast and efficient dispensing programming - Long-term availability of support and updates In the past, a software or CNC specialist, or lengthy training, was often needed to create the ideal potting program. This is no longer the case with the programming tool UPIC-3D/DXF (universal programming interface), included with the UVIS interface software. Any kind of potting program, dabbing, matrix or even CNC program can be created quickly and easily. The latest version now also features visualization of 3D potting to check and troubleshoot created programs. An optional CAD/CAM interface is also available for semi-automated porting of a potting contour loaded into the system in the form of CNC program code from a prepared component drawing. - Fast and efficient dispensing programming - Optimum contour quality thanks to convenient control functions
