Communication gateway DATAEAGLE 7010
IoTRS232RS-485

Communication gateway - DATAEAGLE 7010 - Schildknecht AG  - IoT / RS232 / RS-485
Communication gateway - DATAEAGLE 7010 - Schildknecht AG  - IoT / RS232 / RS-485
Communication gateway - DATAEAGLE 7010 - Schildknecht AG  - IoT / RS232 / RS-485 - image - 2
Add to favorites
Compare this product


Characteristics

Type
communication, IoT
Network
RS-485, RS232

Description

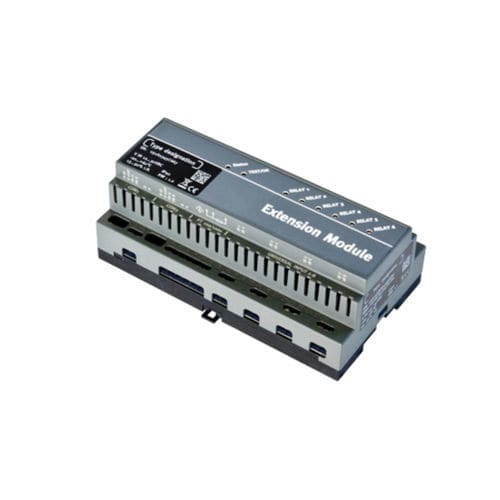

The DATAEAGLE 7010 extension module is a useful port extension for the DATAEAGLE 7010 gateway. You can connect up to 3 extension moduls in total. Sensor signals can now be reliably transmitted to the cloud by radio using DATAEAGLE 7000 series. DATAEAGLE 7010 measures and controls sensors. Analog and digital sensors can be connected to the univerals inputs. Adding to the versatility of the DATAEAGLE 7010 series cloud we offer numerous options like RS232 or RS 485 interface as well as mA- and relais-outputs for remote control. The gateway itself is designed for quick commissioning: It can be programmed remotely through an online portal (Device Cloud), that has predefined parameter settings to transmit sensor values. The DATAEAGLE 7010er series contains an integrated battery which allows operating in case of the loss of AC power. DATAEAGLE 7010 extension product features: 8 universal input ports (4-20 mA or 0-10 V or digital) 2 serial ports RS485 and RS 232 for a digital sensor 1 temperature sensor input for PT100/1000 2 analog output port and 6 Relais output Integrated eSIM-card with worldwide roaming functionality The maximum number of ports using 1 DATAEAGL 7010 and 3 extension modules are: 32 x Universal inputs 24 x Relais (8 Groups) 8 x Analog outputs 4 x PT100/1000 1 x RS232 1 x RS485 You can connect an intelligent display via the RS 232 interface of the DATAEAGLE 7010 and 7011. The DATAEAGLE 7010 Extension adds cost-efficiently more univerals ports to the DATAEAGLE 7010. YOu can connect up to three extension modules. The DATAEAGLE 7012 has only 3 analog and digital ports and is a perfect Starter set. The DATAEAGLE 7011 has 3 universal ports and 2 serial ports.
