Electric testing device SRC-1T

manualfor solar cellsindustrial

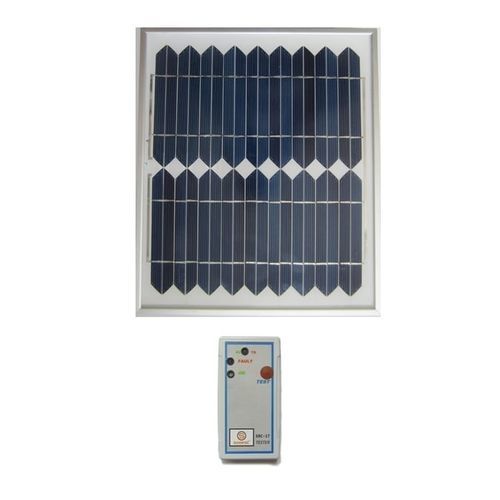

The Testing Device is installed at a 45 degree angle to the pole facing south. The Testing Device is connected through a cable with the E.S.E Lightning Conductor. The Testing Device has to be switched ON. A test has to be performed (See Chapter 3. How to perform a test?) How to perform a test? In order to perform a test of the functionality of any SCHIRTEC E.S.E. Lightning Conductor you have to: Press the red TEST button for 2 – 3 seconds on the Remote Controller. The RX/TX LED lights up in red. After relasing the button the Testing Device, which is connected to the SCHIRTEC E.S.E. Lightning Conductor, performs the test. After a few seconds the test result will be transmitted via radio frequency to the Remote Controller. When the green OK LED lights up and starts blinking; the E.S.E. Lightning Conductor is fully functional. When the red FAULT LED lights up and starts blinking; the E.S.E. Lightning Conductor is not functional and has to be controlled immediately.
