Resistance welding machine MG series

mesh

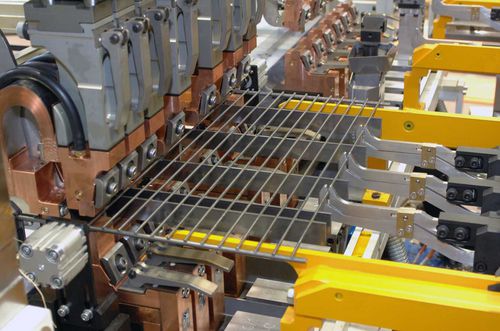

System MG950 for the production of industrial mesh The MG950 is an industrial mesh welding system which is used everywhere where great flexibility, high production speed and the highest product quality is required from the first mesh. Flexible, quick and highest quality from the first mesh Two independent circuits ensure speed and flexibility for complex meshes. Flexibility The highly flexible single welding groups with a width of less than 50 mm (2.0 in) and a straightforward possibility of connection to two independent circuits make extremely productive manufacture of very complex meshes possible in the smallest batch sizes. Speed Cycle speeds of up to 150 wires per minute and two eŒcient direct current medium frequency circuits if required allow a high level of productivity for complex and sophisticated meshes. This is without reverting to cascading which reduces eŒciency. Highest quality The positioning of the very stable line wire feeds is supported by a very precise measurement system. The operating software determines the correct welding parameters. In this way the necessary quality for sale of the mesh is attained as soon as the first mesh produced following conversion. Product characteristics • Mesh width 200 - 1600 mm (7.9 - 63.0 in) • Mesh length 300 - 3000 mm (11.8 - 118.1 in) • Wire diameter 2.0 - 8.0 mm (0.08 - 0.31 in) • Line wire spacing min. 20 mm (0.8 in)
