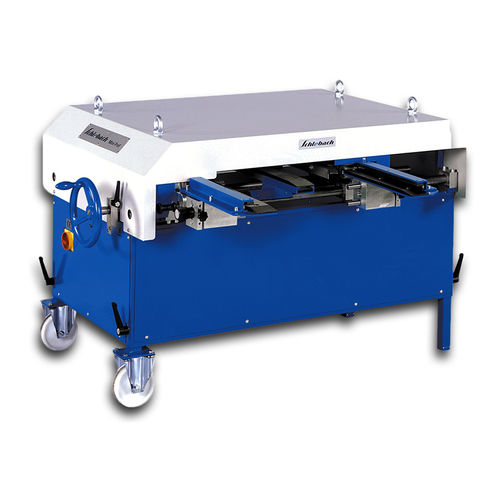

Profile roll forming machine MINI-PROF

Universal machine for the entry-level users or as a backup machine for onsite work to produce double standing seam profiles 25 from blanks or cut lengths in a single pass. Parallel sheet metal is produced in a single work cycle Minimum panel length 500 mm (depending on the material) Stepless width adjustment from 240 mm to 850 mm conveniently via handwheel Tapered, conical or fitting panels in 2 work cycles Smallest axial dimension 50 mm when producing single-sided profiles Height adjustable, leading to comfortable working conditions Transport handles provide mobility TECHNICAL INFORMATION Supply voltage - 230 V / 50 Hz / 1 Ph. 115 V / 50 Hz / 1 Ph. 115 V / 60 Hz / 1 Ph. Drive power - 1.1 kW Operating speed - 8.5 m/min Forming stages - 7 stations Shortest panel length - 500 mm Axial dimension - approx. 170 – 780 mm (depending on the material) Infeed height - 670 – 870 mm (continuously variable) Processable materials - Titanium zinc up to 0.8 mm Copper up to 0.8 mm Aluminium up to 0.8 mm Sheet steel (galvanized and coated) up to 0.7 mm Stainless steel up to 0.5 mm Dimensions (L x W x H) - 1,200 mm x 1,400 mm x 850 – 1,050 mm Weight - 220 kg
