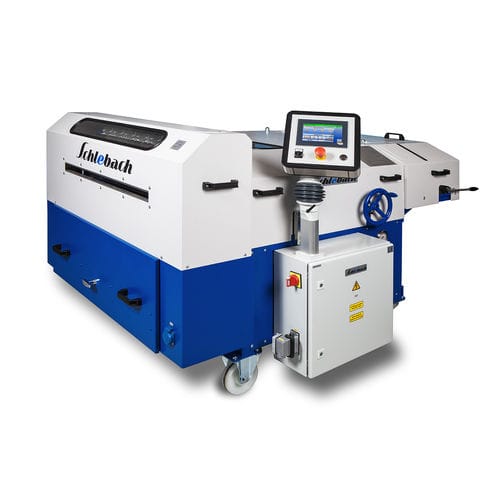

Profile roll forming machine SPA

automatic

Robust high-performance profiling machine for continuous operation with hydraulic cutter for straight, burr- and twist-free cross-cutting after profile shaping for producing double standing seam with a height of 25 mm or 32 mm, either in standard shape (SPA) or with clip relief (PAC). Robust and suitable for all double standing seam profile applications User-friendly PLC with touch panel Hydraulic cutter for straight, burr- and twist-free cross-cutting after profile shaping Automatic positioning of the cutting guide via width adjustment Waste-collection container Infeed width max. 870 mm, infinitely variable Alternative: Special model SPA 1000 / PAC 1000 with max. 1.080 mm Shortest panel length 200 mm (depending on the material) Optionally with roller shear RS for cross-cuts before profile shaping (shown in picture), or combination RS+LS for additional longitudinal cutting Prepared for connecting a QA60 cross-cutting unit Available for standard double standing seam (SPA) or with clip relief (PAC) Tapered, conical or fitting panels in 2 work cycles Roll sets for double standing seam 25 mm as well as 32 mm available Profile rollers made from high-quality special steel with high level of corrosion and wear protection Resilient mounts of the upper profile rollers ensure impression-free and low-wear production of the panels
